自定义视图组件(v4)

阅读之前

你应该:

什么是视图组件

我们将一个视图中提供数据源的组件称为视图组件。

下面,我们将根据提供的示例布局进行进一步介绍。

示例布局(默认表格视图布局)

<view type="TABLE">
    <pack widget="group">
        <view type="SEARCH">
            <element widget="search" slot="search" />
        </view>
    </pack>
    <pack widget="group" slot="tableGroup">
        <element widget="actionBar" slot="actionBar">
            <xslot name="actions" />
        </element>
        <element widget="table" slot="table">
            <element widget="expandColumn" slot="expandRow" />
            <xslot name="fields" />
            <element widget="rowActions" slot="rowActions" />
        </element>
    </pack>
</view>
  • view: 视图标签;一个视图中的所有组件将共享数据源,视图的数据源通过视图组件进行提供。(在这个示例中,该视图的数据源通过widget="table"(TableWidget)提供)
  • pack: 容器组件标签;
  • element: 通用元素组件标签;
  • xslot:dsl插槽;

根据标签性质,我们可以将这个示例布局进一步简化,只留下我们目前要关注的主要内容。

<view type="TABLE">
    <element widget="table" slot="table">
        <xslot name="fields" />
    </element>
</view>

在以上示例布局中,有且仅有一个组件会向视图提供数据源,那就是widget="table"(TableWidget)这个组件。
我们接下来将对这个组件进行自定义,以实现业务中所需的列表(List)数据源展示方式。

1 平台组件简介

平台提供的基础组件有如下几种:

组件名称 描述
BaseElement element标签通用组件
BaseElementViewWidget 通用视图组件
BaseElementObjectViewWidget 对象(Object)数据源通用视图组件
BaseElementListViewWidget 列表(List)数据源通用组件

平台提供的内置组件有如下几种:(均使用element标签)

组件名称 标签 视图类型 描述
TableWidget widget="table" TABLE 内置表格组件
FormWidget widget="form" FORM 内置表单组件
DetailWidget widget="detail" DETAIL 内置详情组件
GallertWidget widget="gallery" GALLERY 内置画廊组件
TreeWidget/CardCascaderWidget widget="tree/cardCascader" TREE 内置树/卡片级联组件

我们可以根据业务场景,继承不同的组件,来实现自己的业务场景。
在自定义过程中,我们建议尽可能的将逻辑控制在组件内部。如果场景是唯一且确定的,也可以进行一些特殊逻辑处理。

2 场景:实现一个虚拟滚动表格(不使用分页器)

2.1 确定组件名称 widget="VirtualTable"

通过布局设置自定义组件名称

我们将原表格布局中的widget="table"改为我们所需要的自定义组件名称即可。

多个视图可以绑定同一个布局,所以这种修改方式更适用于大范围使用相同布局的情况。

<view type="TABLE">
    <pack widget="group">
        <view type="SEARCH">
            <element widget="search" slot="search />
        </view>
    </pack>
    <pack widget="group" slot="tableGroup">
        <element widget="actionBar" slot="actionBar>
            <xslot name="actions" />
        </element>
        <element widget="VirtualTable" slot="table">
            <element widget="expandColumn" slot="expandRow" />
            <xslot name="fields" />
            <element widget="rowActions" slot="rowActions" />
        </element>
    </pack>
</view>

通过DSL设置自定义组件名称

我们使用了slot="table"这个插槽,通过属性合并覆盖的方式,在DSL上直接指定我们所需要的自定义组件名称即可。

这种修改方式更适用于个别几个视图需要使用该组件的情况。

<view type="TABLE">
    <template slot="table" widget="VirtualTable">
        ......
    </template>
</view>

2.2 简单实现一个基础功能的虚拟滚动表格

定义一个VirtualTable.vue文件,使用平台提供的oio-table组件。目前内部采用vxe-table封装,相关api文档 点击查看

props定义:

  • showDataSource: 当前展示数据;通过平台内置BaseElementListViewWidget组件提供。
<template>
  <oio-table ref="table" border show-overflow height="400" :row-config="{ isHover: true }" :data="showDataSource">
    <slot />
  </oio-table>
</template>
<script lang="ts">
import { ActiveRecord, OioTable } from '@kunlun/dependencies';
import { defineComponent, PropType } from 'vue';

export default defineComponent({
  name: 'VirtualTable',
  components: {
    OioTable
  },
  props: {
    showDataSource: {
      type: Array as PropType<ActiveRecord[]>
    }
  }
});
</script>

定义一个VirtualTableWidget.ts文件,继承BaseElementListViewWidget组件,可快速实现根据元数据查询列表数据等相关功能。

通过重写showPagination属性,强制关闭分页器。

import { BaseElementListViewWidget, BaseElementWidget, SPI, ViewType, Widget } from '@kunlun/dependencies';
import VirtualTable from './VirtualTable.vue';

@SPI.ClassFactory(
  BaseElementWidget.Token({
    viewType: ViewType.Table,
    widget: 'VirtualTable'
  })
)
export class VirtualTableWidget extends BaseElementListViewWidget {
  public initialize(props) {
    super.initialize(props);
    this.setComponent(VirtualTable);
    return this;
  }

  @Widget.Reactive()
  protected get showPagination(): boolean | undefined {
    return false;
  }
}

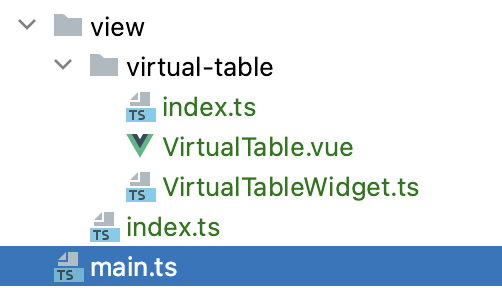

2.3 工程结构如下图所示

将VirtualTableWidget.ts文件在main.ts(入口文件)导入即可。

Oinone社区 作者:oinone原创文章,如若转载,请注明出处:https://doc.oinone.top/frontend/22.html

访问Oinone官网:https://www.oinone.top获取数式Oinone低代码应用平台体验
