自定义字段的数据联动

某种情况下,开发人员期望自定以的字段发生变化后,需要修改其他的字段,这篇文章从两个维度来讲解如果处理数据的联动

界面设计器配置

1: 在界面设计器页面中的的组件区域找到自定义的字段,设计元件
数式Oinone低代码-自定义字段的数据联动

2: 在模型区域,搜索提交方式,如果找到了,就把该字段拖拽进来, 如果找不到,就在元件中的组件区域,拖拽一个文本字段,按照下面的配置进行配置,然后保存

图一是找到了对应的字段
图二是找不到对应的字段

数式Oinone低代码-自定义字段的数据联动
【图一】

数式Oinone低代码-自定义字段的数据联动
【图二】

图二的字段编码必须是constructDataTrigger

3: 从模型区搜索联动函数,将其拖拽进来

数式Oinone低代码-自定义字段的数据联动

3: 从模型区搜索提交数据,将其拖拽进来
数式Oinone低代码-自定义字段的数据联动

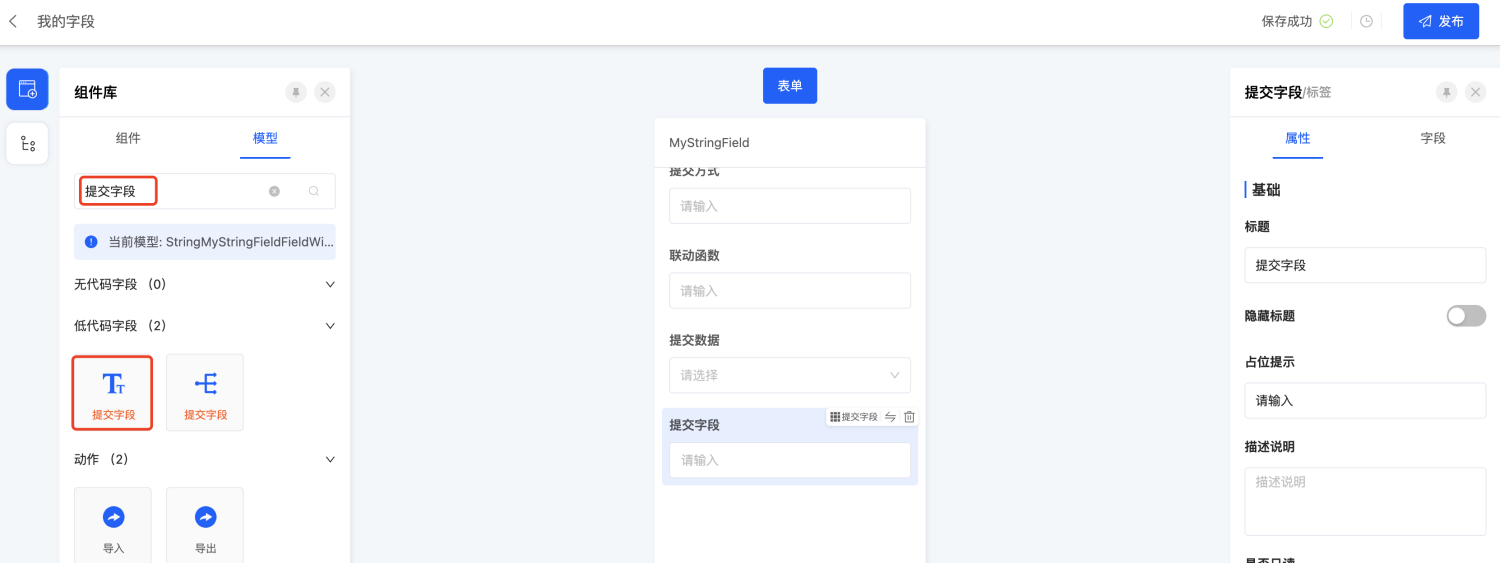

4: 从模型区搜索提交字段,将其拖拽进来
数式Oinone低代码-自定义字段的数据联动

5: 发布

(记得刷新页面哦)

最后再到对应的设计器页面,选中该字段,进行配置
数式Oinone低代码-自定义字段的数据联动

提交方式为blur或者change , 需要开发者手动调用该方法 this.blur()或者this.change(value)

// 字段对应的ts文件

class MyField extends FormFieldWidget {
    onChangeValue(val) {
     // this.change(val)
     // this.blur()
  }
}

联动函数就是要调用的后端函数

提交数据分为:
变更字段 -> 发生变化后的字段
当前视图字段 -> 当前视图所有的字段
指定字段 -> 指定字段,如果配置的指定字段,那么提交字段的配置就要输入对应的字段

代码配置

平台也支持通过代码的方式修改字段

// 字段对应的ts文件

class MyField extends FormFieldWidget {
    onChangeValue(val) {
    // 修改字段本身的值
    this.change(val)

    // 修改其他字段的值
    this.formData.otherField = 'value'
    this.reloadFormData$.subject.next(true);
  }
}

Oinone社区 作者:汤乾华原创文章,如若转载,请注明出处:https://doc.oinone.top/frontend/4397.html

访问Oinone官网:https://www.oinone.top获取数式Oinone低代码应用平台体验
